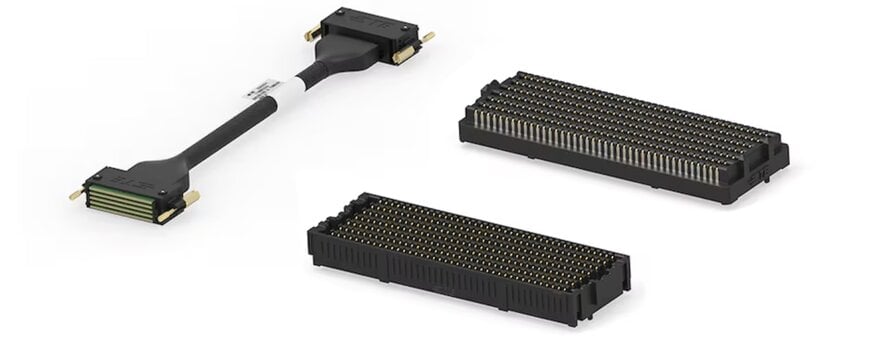

56G Connector Targets High-Speed Modular Systems

TE Connectivity has introduced its 56G MezzaWave connectors and cable assemblies, designed for high-speed data transmission in applications such as edge AI, data centers, industrial automation, robotics, and aerospace systems. The interconnect solution supports next-generation modular architectures requiring high bandwidth and reliable signal performance.

High-Speed Performance for Data-Intensive Systems
The MezzaWave connector family is based on an open-pin-field array platform engineered to support data rates of up to 56 Gbps using PAM4 modulation. This capability enables higher data throughput within compact system designs, addressing increasing bandwidth demands in edge AI processing and distributed computing environments.

Signal integrity is a central design consideration, particularly in high-density systems where crosstalk and attenuation can impact performance. The connector architecture supports optimized routing and grounding, helping maintain stable transmission at elevated data rates.

Design Flexibility in High-Density Interconnects
The connectors are available with a 1.27 mm pitch and configurable pin counts ranging from 80 to 560, supporting a wide range of board-to-board interconnect requirements. Stack heights between 7 mm and 10 mm provide additional flexibility for system designers managing space constraints in compact electronic assemblies.

Integrated power pins rated at 1.6 A reduce the need for additional components, contributing to simplified board layouts and improved power distribution within high-density designs.

Compatibility and Integration into Existing Systems
The MezzaWave series supports drop-in compatibility, allowing it to replace existing interconnect solutions without requiring a redesign of the printed circuit board. This feature reduces engineering effort and shortens development cycles when upgrading systems to higher data rates.

The connectors comply with VITA 57.1 (FMC) and VITA 57.4 (FMC+) standards, as well as ANSI requirements, ensuring interoperability across modular platforms commonly used in embedded computing and aerospace applications.

Mechanical Reliability and Environmental Performance
The design incorporates ball grid array (BGA) technology combined with a ruggedized mechanical structure to ensure stable electrical connections. The connectors are rated for up to 1,000 mating cycles, supporting repeated installation and maintenance operations.

Operational reliability is further supported by a wide temperature range from −55°C to 125°C, making the connectors suitable for harsh environments, including aerospace and defense systems where thermal extremes and vibration are common.

Cost and System-Level Efficiency
By enabling direct replacement of existing components and reducing the number of discrete elements required, the connector system can lower overall system costs. The use of BGA technology contributes to manufacturing efficiency, with potential cost reductions of 20% to 30% depending on system configuration.

Relevance for Digital Supply Chain and Edge AI Infrastructure
As data-intensive applications expand, interconnect technologies play a critical role in enabling scalable and modular architectures. The MezzaWave platform supports the development of high-performance systems within a digital supply chain, where reliable, high-speed connectivity is essential for real-time data processing and system integration.

The introduction of 56G-capable connectors reflects ongoing advancements in interconnect design, driven by the need for higher bandwidth, reduced latency, and increased system flexibility across industrial and computing environments.

Edited by Industrial Journalist, Romila DSilva, with AI assistance.
