Modular HMI Systems for Industrial Automation Interfaces

Industrial automation environments such as heavy machinery, robotics, and packaging lines require operator interfaces that integrate control, visualization, and mechanical adaptability within constrained spaces. In this context, Advantech has introduced the SPC-800 V2 series, a configurable HMI platform available as Panel PC and Monitor variants.

Configurable interface design for machine-specific workflows

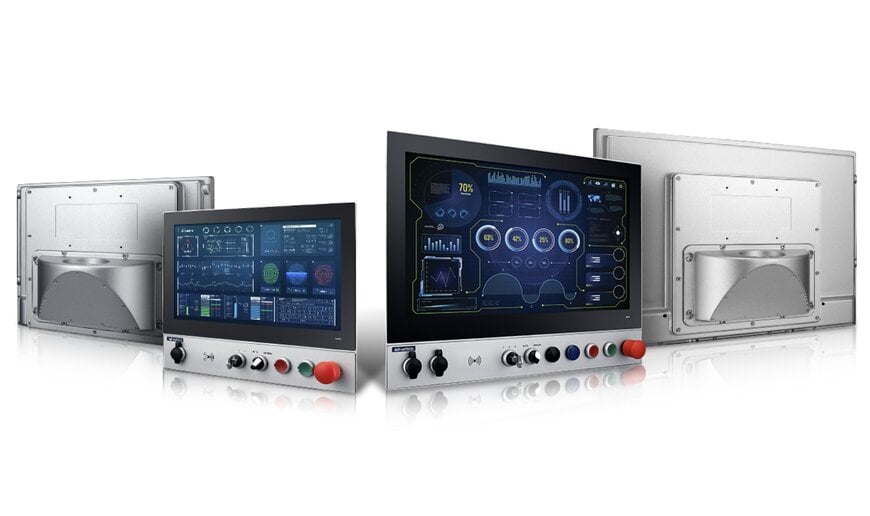

The SPC-800 V2 series is built around customizable front panels that integrate both visual and functional elements directly into the HMI interface. These include emergency stop buttons, illuminated ring keys, RFID readers, and color-coded push buttons, enabling adaptation to machine-specific control requirements.

This approach allows system integrators and OEMs to align operator interfaces with defined workflows, improving usability in applications such as robotic cells or automated production lines where direct physical interaction with control elements is required.

Processing and display for control and visualization tasks
The Panel PC version is equipped with Intel Core i3 and i5 13th generation processors and supports up to 64 GB DDR5 SODIMM memory. Combined with 15.6 inch and 21.5 inch full HD displays in 16:9 format and projected capacitive multi-touch input, the system supports real-time data visualization and machine control functions.

This configuration addresses typical requirements in industrial HMI systems, where graphical responsiveness and processing capability are needed for monitoring production parameters, controlling robotic operations, and managing user inputs simultaneously.

The enclosure is rated IP65 and designed without silicone, providing resistance to dust and water ingress. This supports deployment in environments with exposure to contaminants or washdown conditions.

Rear design reduces wiring complexity and maintenance effort
The mechanical redesign of the rear enclosure focuses on simplifying cable routing and improving access to terminal connections. An enlarged wiring compartment enables direct connections while maintaining IP65 protection, reducing installation time and facilitating maintenance tasks.

Flexible mounting options include VESA, arm, pole, and ceiling configurations, along with compatibility with Rittal CP40 and Bernstein CS-480 B.Flex standards. This enables integration across different machine layouts, including space-constrained installations and modular production cells.

Extending visualization distance in large-scale systems
The Monitor variants, including SPC-821 and SPC-815 (M) V2, integrate HDBase-T 2.0 technology to support video transmission distances of up to 100 meters. This enables separation between control units and display interfaces in large production environments.

The system supports 4K and 8K signal transmission with ESD protection and enables daisy-chain configurations. In practice, this allows operators to access visualization interfaces at multiple points along a production line while maintaining centralized control hardware.

An additional operational benefit is reduced downtime, as monitor units can be replaced independently without requiring changes to the control system.

Integration into digital manufacturing environments
The combination of configurable interfaces, extended connectivity, and modular mounting supports deployment within a broader digital supply chain, where machine-level data visualization and operator interaction are distributed across production environments.

By aligning interface design, processing capability, and installation flexibility, the SPC-800 V2 series addresses requirements for scalable HMI deployment in industrial automation systems without introducing additional cabinet infrastructure.
