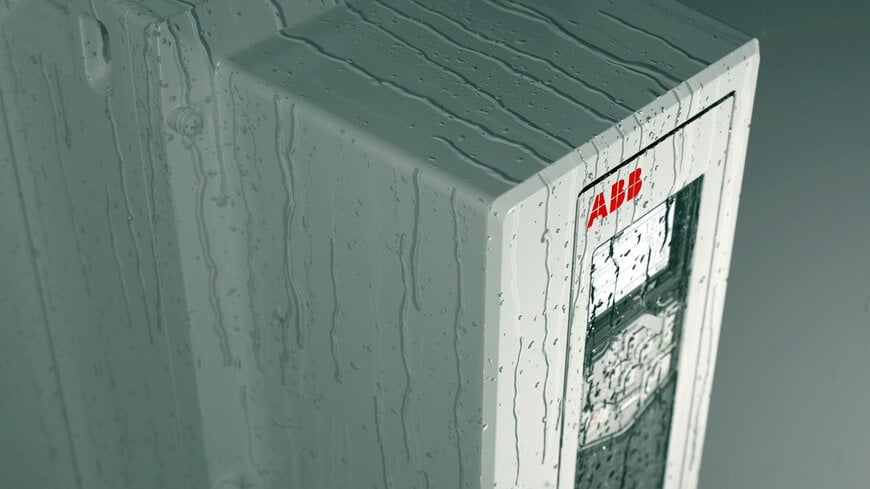

High-Protection Motor Control for Harsh Industrial Environments
ABB extended its all-compatible drive platform to provide localized motor control in severe operating conditions without separate protective enclosures.
global.abb
ABB introduced IP66 and UL Type 4X rated variants across its ACS580, ACH580, and ACQ580 variable speed drive series to enable decentralized motor control in aggressive environments. The hardware expansion provides ingress protection against high-pressure water jets, particulate matter, and chemical exposure across food production, water treatment, and building automation infrastructures.
Environmental Ingress Specifications and Thermal Performance
The introduction of the IP66 and UL Type 4X enclosures allows these variable speed drives to operate directly in ambient conditions featuring extreme precipitation, airborne dust, salt spray, and high humidity. By eliminating the requirement for external protective cabinets, the configuration reduces mechanical installation complexity, minimizes the overall system footprint, and lowers the total cost of ownership. The internal power electronics utilize optimized thermal management to maintain a continuous duty cycle under high thermal stress, yielding average energy consumption reductions of 25 percent compared to fixed-speed motor operation.
Industry-Specific Deployment and Application Architecture
The application of these high-protection variants spans several specialized industrial sectors:
- Food, Beverage, and Agriculture:The ACS580 variants are configured for dairy, meat processing, bakery, and aquaculture facilities. The enclosure material resists deep chemical washdowns and automated sanitization procedures required to meet strict hygiene standards.
- Water and Wastewater Infrastructure: The ACQ580 variants feature enhanced corrosion resistance matching the atmospheric demands of pumping stations, clarifiers, and chemical dosing systems, where hydrogen sulfide and caustic gases degrade standard industrial electronics.
- HVACR and Climate Control: The ACH580 variants handle outdoor building automation tasks, providing localized control for rooftop air handlers, cooling towers, outdoor pump skids, and exterior exhaust fans without seasonal degradation from ultraviolet exposure or freezing temperatures.
Integrated Power Quality and Control Interface Hardware
The electronic architecture incorporates an optimized direct current choke to mitigate line harmonics in accordance with standard power quality regulations. High-frequency noise suppression is managed via a built-in C2 electromagnetic compatibility filter, preventing interference with adjacent control networks. For physical expansion, the control board includes two dedicated option slots accommodating various fieldbus adapters and supplementary input-output modules.
Wireless connectivity is supported through an optional Bluetooth-enabled control panel. Operators can perform commissioning, parameter adjustments, and real-time monitoring via the Drivetune and Drive Composer applications. This wireless interface serves as a safety mechanism, allowing technical personnel to interact with the system while remaining completely outside the active arc flash boundary during live electrical testing.
Additional Context: Technical Specifications and Competitive Benchmarking
The IP66 and UL Type 4X ratings place these drives in direct competition with decentralized drive architectures like the Siemens Sinamics G115D and the Danfoss VLT Decentral Drive FCD 302. While conventional centralized drives require air-conditioned control rooms or large stainless-steel enclosures, these integrated units deploy directly alongside the driven machinery.
The primary technical differentiator lies in the dual-rating certification. IP66 certification proves protection against high-pressure water streams from any direction based on IEC 60529 standards, while the UL Type 4X rating guarantees corrosion resistance and protection against external ice formation under NEMA standards. Compared to standard IP55 or UL Type 12 enclosures typically used in light industrial applications, these units withstand a minimum hosing pressure of 100 kilopascals at a distance of 3 meters, making them mechanically viable for direct-washdown zones in processing plants where lighter enclosures fail due to seal degradation.
Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
