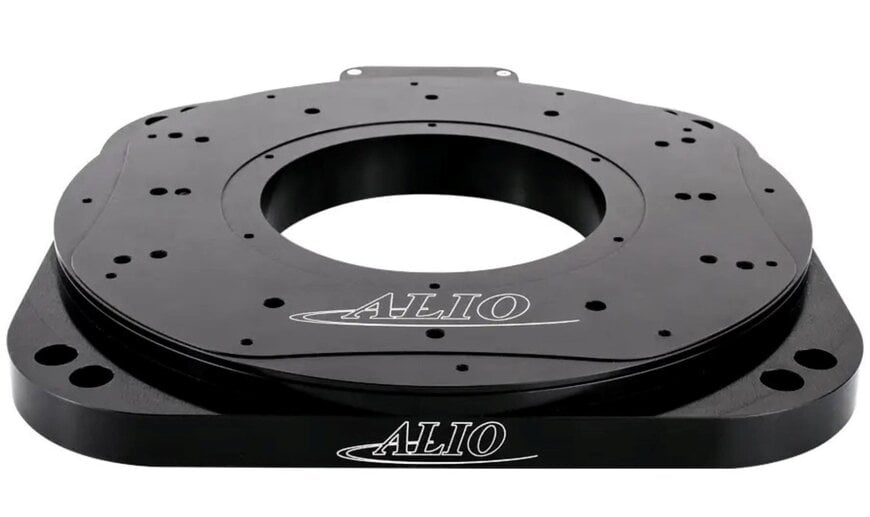

Ultra-Low-Profile Rotary Stage for High-Precision Motion Control

Allient Inc. has released the ThruSight-Theta Continuous Rotation Rotary Stage, an ultra-low-profile motion system engineered to deliver high-precision positioning. The continuous rotation technology provides highly repeatable rotary motion and facilitates compact system integration, specifically targeting equipment used within the automation, photonics, semiconductor, and life science sectors.

Axial Flux Technology and Ironless Motor Architecture
The ThruSight-Theta utilizes an ironless motor design combined with axial flux technology to eliminate cogging torque, a common magnetic interaction in traditional motors that causes velocity ripple and positioning fluctuations. By removing cogging torque, the stage delivers exceptionally smooth motion and improved positioning accuracy for demanding move-and-settle applications. The system features a 25 mm overall height, which significantly reduces the moving mass and minimizes Abbe error—a critical geometric factor in precision motion control where angular errors amplify linearly with distance from the measurement axis.

System Integration and Positional Feedback Mechanisms
Designed for compact integration into existing machine architectures, the ultra-low-profile rotary stage features a 110 mm through-hole aperture. This wide opening enables backside accessibility, allowing engineers to safely route cables, direct laser beams, or house stationary optical components directly through the center of rotation in semiconductor manufacturing and photonics assemblies.

To support immediate integration into OEM automation systems, the stage provides positional feedback upon power-up through multiple configuration options. Users can select between 1 Vp-p Sin-Cos analog, Digital AQB, and absolute encoder outputs. These feedback mechanisms, alongside standard three-meter cabling, ensure compatibility with a broad range of industrial controllers. Product Line Manager Mark Holcomb noted that the ironless motor architecture is strictly engineered to ensure smooth, repeatable rotary motion, while the compact design facilitates both precise positioning and efficient integration into broader manufacturing hardware.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original news release.

In the high-precision motion control sector, systems like the ThruSight-Theta generally compete with direct-drive rotary stages from manufacturers such as Aerotech and Physik Instrumente. A standard benchmark for low-profile rotary stages is the ratio of the through-hole aperture diameter to the overall stage height. While typical competitive models in this class offer overall heights ranging from 30 mm to 50 mm to accommodate similar apertures, the 25 mm profile of this stage represents a highly condensed form factor. This reduced vertical height directly correlates with a lower center of gravity during integration, providing measurable mechanical advantages in multi-axis automation stacks by reducing cantilever effects and shortening dynamic settling times.

Edited by Aishwarya Mambet, Induportals Editor, with AI assistance.
