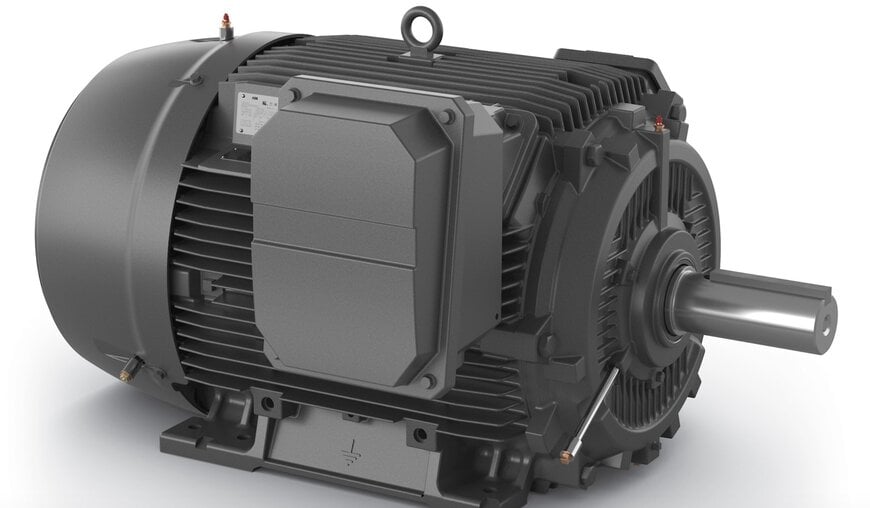

ABB Releases SD200 SP4 Severe-Duty NEMA Premium 4 Motor

ABB has introduced the SD200 SP4 severe-duty motor engineered to meet upcoming energy efficiency regulations across mining, chemical processing, petroleum refining, pulp and paper, and water treatment operations.

ABB's SD200 SP4 severe-duty motor delivers NEMA Premium 4 efficiency to assist industrial operators in preparing for the U.S. Department of Energy's 2027 efficiency standards while offering backward compatibility with existing SD200 installations.

Regulatory Efficiency Compliance and Platform Design

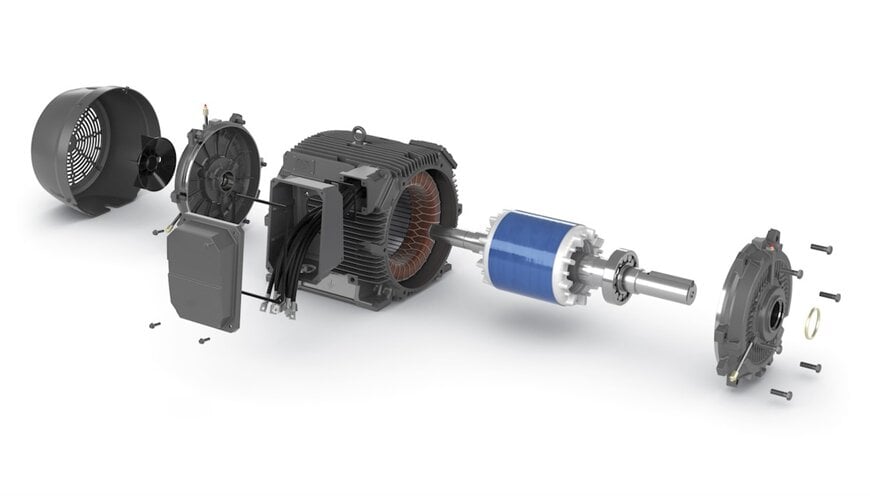

Beginning June 1, 2027, regulatory standards will prohibit the manufacturing of 100 to 250 horsepower motors that conform only to current NEMA Premium efficiency ratings. Built on ABB's severe-duty architecture, the SD200 SP4 is constructed with heavy-duty cast iron frames, C-4140 high-strength steel shafts, Class H insulation systems, and an IP55 ingress protection enclosure to operate in harsh processing environments.

Operational Energy Performance and Drop-In Integration
The motor operates with NEMA Design B performance characteristics, reducing electrical losses by an average of 20 percent compared to standard NEMA Premium motors during continuous operation. Lower internal heat generation during operation supports reduced thermal stress on components and extends maintenance intervals.

The unit maintains frame-by-frame dimensional compatibility with existing SD200 motors, allowing operators to complete drop-in retrofits without modifying mounting structures or mechanical interfaces. An oversized conduit box is integrated into the frame to simplify field wiring and routine serviceability.

Configuration Options and Availability
The SD200 SP4 motor is supplied in 125 to 250 horsepower configurations with two-pole and four-pole options through authorized distribution channels. Six-pole variants within the same horsepower range are scheduled for release later in the year.




Additional Context
This section details technical specifications not included in the original news release.

NEMA Premium 4 (often aligned with International Efficiency IE4 super-premium efficiency classification) requires reduced stator copper losses and rotor core losses, achieved through optimized slot geometry and higher-grade electrical silicon steel laminations. The IP55 enclosure rating signifies complete protection against contact with internal moving or energized parts, resistance to harmful dust deposits, and protection against water projected by a nozzle from any direction.

Class H electrical insulation provides a maximum allowable winding operating temperature limit of 180°C with a standard thermal margin allowance, ensuring dielectric stability under high ambient temperatures and transient voltage spikes. AISI C-4140 steel is a chromium-molybdenum alloy steel heat-treated for high torsional strength and fatigue endurance, minimizing shaft deflection under heavy radial load conditions. NEMA Design B motors are characterized by normal starting torque, low starting current, and a slip rating of less than 5 percent at full load.
