Industrial Integrated Controller for Modular Machinery

Original equipment manufacturers and machine builders face escalating challenges as production assets transition toward hyper-connected, data-intensive architectures. Modern industrial automation requires simultaneous execution of high-speed deterministic logic, synchronized multi-axis motion, and safety interlocks, while satisfying increasingly rigorous global operational technology security regulations. Historically, addressing these disparate operational demands required integrating auxiliary safety relays, standalone network security appliances, and oversized control cabinets, which inflated engineering design time, component counts, and enclosure costs.

Unified Architecture and High-Density Form Factor

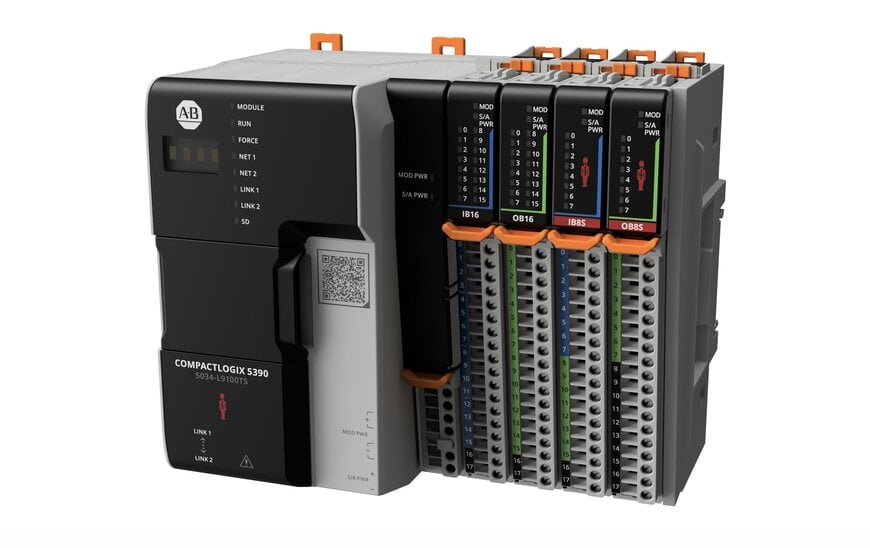

To address footprint constraints and engineering overhead, Rockwell Automation launched the CompactLogix 5390 controller as the latest evolution within its Integrated Architecture ecosystem. The controller achieves a 43 percent physical footprint reduction compared to the preceding CompactLogix 5380 series. This reduction enables machine builders to minimize control cabinet panel space requirements and establish standardized control chassis configurations across diverse machine lines.

The platform integrates directly with the newly introduced 5034 PointMax I/O system, enabling granular, modular local I/O expansions alongside distributed field configurations. By unifying standard execution logic, integrated functional safety, and native cybersecurity on a single processing engine, the system eliminates the inter-module latency and configuration discrepancies associated with multi-chassis safety and security implementations.

Embedded Security and Regulatory Compliance
The CompactLogix 5390 incorporates hardware-level and firmware-level defensive capabilities aligned with the international industrial automation security standard IEC 62443-4-2. Designed for regulatory compliance, the controller is engineered to meet the mandatory requirements of the European Union Cyber Resilience Act, mitigating deployment and compliance risks for export-oriented machinery manufacturers.

These embedded protections secure edge network access, implement authenticated engineering communications via CIP Security protocols, and support encrypted system logging. This eliminates the need for machine builders to engineer external hardware firewalls or complex software overlays to safeguard industrial communications against operational tampering.

Ecosystem Integration and Motion Scalability
The controller interfaces across the broader Rockwell Automation portfolio, integrating directly with Kinetix servo motion systems, PowerFlex variable frequency drives, and Stratix managed industrial switches. System engineering and commissioning workflows are centralized through FactoryTalk Design Studio and Studio 5000 Logix Designer software environments, accelerating code deployment and runtime validation.

Through scalable Ethernet topologies—including Dual IP segmentation and Device Level Ring (DLR) architectures—the platform supports modern data pipelines from standalone skid automation up to plant-wide supervisory control systems.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The CompactLogix 5390 series (catalog family 5034) introduces fundamental performance gains over the legacy CompactLogix 5380 (5069 family). Processing throughput is up to 2x faster, yielding significantly reduced cycle overhead and faster safety reaction times. Functional safety is integrated into the baseline architecture, delivering native SIL 2 / PLd compliance across all standard models without requiring dedicated safety coprocessor variants. The controller supports up to 128 motion axes, up to 4,000 OPC UA nodes for horizontal and vertical plant integration, and up to 32 local PointMax I/O modules supporting Remove and Insert Under Power (RIUP) functionality. Operating ambient ranges extend from -25°C to +60°C for standard configurations, and -40°C to +70°C for extreme environment (XT) options.

Within the competitive programmable logic controller landscape, mid-range industrial control architectures—such as the Siemens SIMATIC S7-1500 compact series (e.g., CPU 1515SP PC2 / 1511F) and Beckhoff CX series embedded PCs—benchmark against the CompactLogix 5390 on execution speed, fieldbus topology support, and edge communication density. While competing European platforms rely heavily on Profinet IRT or EtherCAT to achieve deterministic sub-millisecond synchronization, the CompactLogix 5390 leverages high-speed EtherNet/IP with CIP Sync and CIP Safety. Furthermore, native hardware alignment with IEC 62443-4-2 Component Security Level (SL) standards establishes a concrete benchmark against legacy field controllers that still rely on perimeter firewalls to satisfy upcoming EU Cyber Resilience Act supply chain mandates.
