IP67 Camera and Components For vision engineers looking for a complete solution
Find a complete vision system that reliably acquires images in dust and water. Basler offers all the components for an IP67 vision system and works with you to create the right solution—so you get a system that you can rely on.
www.baslerweb.com
Find a complete vision system that reliably acquires images in dust and water. Basler offers all the components for an IP67 vision system and works with you to create the right solution—so you get a system that you can rely on.

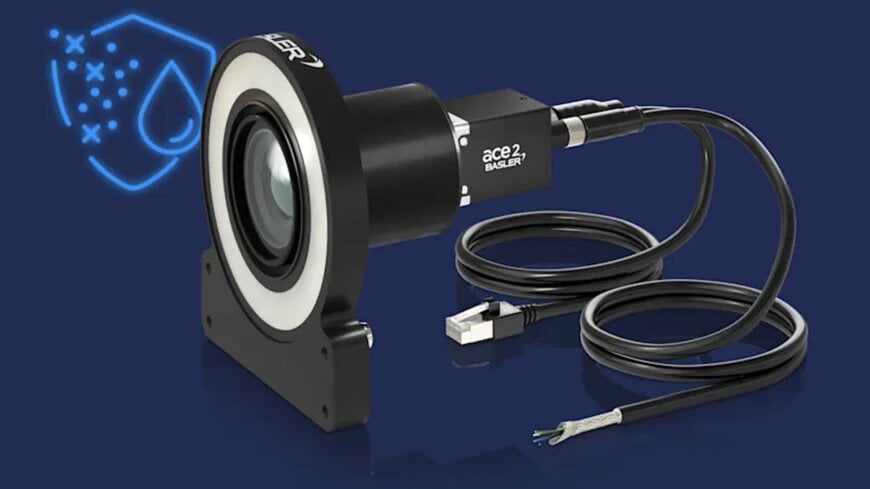

ace 2 IP67 camera
These industrial-grade and compact cameras acquire precise images, even under the most demanding conditions with dust and water.
- IP67 protection with mounted lens housing and cables
- Resolutions up to 24.5 MP at frame rates up to 51 fps
- GigE interface for stable data transfer over distances of up to 100 m
- M12 connection for data cable and M8 connection for I/O cable
- In-camera features for easy integration and quick troubleshooting
Lenses and lens housings
Choose a lens according to your requirements and then select the right lens housing to protect it from dust and water.
Choose a lens according to your requirements and then select the right lens housing to protect it from dust and water.
- Lenses for sensor resolutions up to 25 MP and sensor formats up to 1.2"
- Lens housing suitable to protect the lens from dust and water in accordance with the IP67 standard
- Adapter rings for mounting the lens housing on the camera
IP67 lighting
Dust and water protection is also important for the lighting. Ensure high image quality under demanding conditions with homogeneous lighting.
Dust and water protection is also important for the lighting. Ensure high image quality under demanding conditions with homogeneous lighting.
- IP67 protection with mounted cable
- Ring and bar lighting in various sizes
- LED lighting in the colors white, blue, red, and infrared
- Flexible handling in continuous or trigger mode without external lighting controller
- Optional: combine with Basler Lighting Controller (SLP Controller) for simple lighting control
Cable
Find data and I/O cables that guarantee optimum performance and, thanks to special connectors, protect the IP67 camera from dust and water.
Find data and I/O cables that guarantee optimum performance and, thanks to special connectors, protect the IP67 camera from dust and water.
- GigE data cable for stable data transfer
- Screwable M12 8-pin connector on the camera side and RJ-45 connector on the host side
- Up to 25 m long
- I/O cable for controlling the camera I/O ports
- Screwable M8 6-pin connector on the camera side and one open end
- Up to 10 m long
