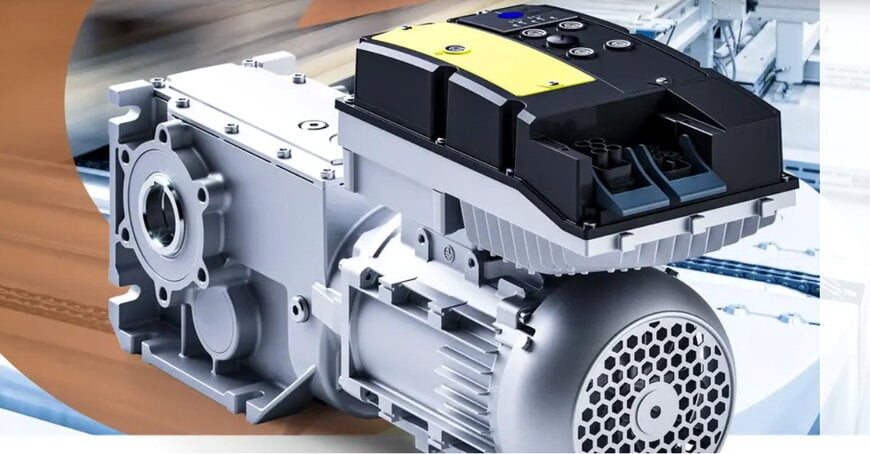

High Efficiency Synchronous Motor and Decentralized Inverter Systems

The IE5/IE6 Motor Drive System integrates the i650 motec decentralized frequency inverter with m550 or m650 synchronous motors to provide a high-efficiency solution for intralogistics and industrial conveyor applications. By combining IE5 and IE6 class energy performance with integrated logic processing, the system reduces hardware requirements and energy losses in complex digital supply chain environments.

Technical Architecture and Motion Control
The system utilizes an integrated Logic PLC and positioning functions to enable independent motion control. This decentralized approach allows the drive to manage positioning tasks without requiring a higher-level controller, which simplifies the overall system architecture. In applications such as conveyor lines and stroke drives, this autonomy reduces project development timelines and hardware costs.

The drive provides up to 300 percent overload torque, allowing for a cold start from a standstill under full load conditions. This performance is achieved without motor feedback, utilizing the Sensorless Speed Management (SLSM) algorithm to maintain the accuracy typically associated with closed-loop control. By eliminating the need for physical encoders and associated cabling, the system reduces potential points of failure and simplifies mechanical mounting procedures.

Energy Recovery and Efficiency Standards
The drive system is engineered to meet IE5 and IE6 energy efficiency standards, which are currently among the highest classifications for electric motors. The integration of the motor, gearbox, and inverter reduces total energy losses by a measured 60 percent compared to conventional drive configurations.

A critical feature of the i650 motec is the integrated energy recovery system. This mechanism automatically feeds regenerative energy back into the mains supply during braking or descending movements without requiring additional external hardware or braking resistors. Furthermore, the i500 cabinet inverters can share excess energy via a DC network to power adjacent axes, optimizing the energy balance of the entire installation.

Connectivity and Safety Integration
The system supports the IO-Link interface, allowing machine operators to extract high-resolution data from integrated sensors for predictive maintenance and process transparency. For safety-critical applications, the system includes Safe Torque Off (STO) and STO over CIP as standard features.

Future iterations of the platform are scheduled to include expanded encoderless safety functions, such as Safely-Limited Speed (SLS), and support for PROFISAFE and FSoE protocols. These additions are designed to meet evolving regulatory requirements while maintaining a hardware-light configuration.

Application in Dynamic Logistics
The motors cover a power range from 0.25 to 22 kW and are compatible with various gearbox types to suit specific torque requirements. Because IE5 synchronous motors are often more compact than standard IE3 asynchronous motors, they offer a higher power density for space-constrained installations. This makes the system particularly suitable for high-dynamic environments such as airport baggage handling and beverage industry bottling lines, where precise positioning and rapid load changes are constant variables.

To assist in technical planning, the web-based EASY System Designer tool provides transparent data on energy consumption. This allows engineers to calculate the precise combination of motor and gearbox required for a specific load profile, ensuring that components are not oversized, thereby further reducing both capital expenditure and operational CO₂ emissions.

Edited by Evgeny Churilov, Induportals Media - Adapted by AI.
