Scalable ARM Performance in a COM-HPC Mini Module

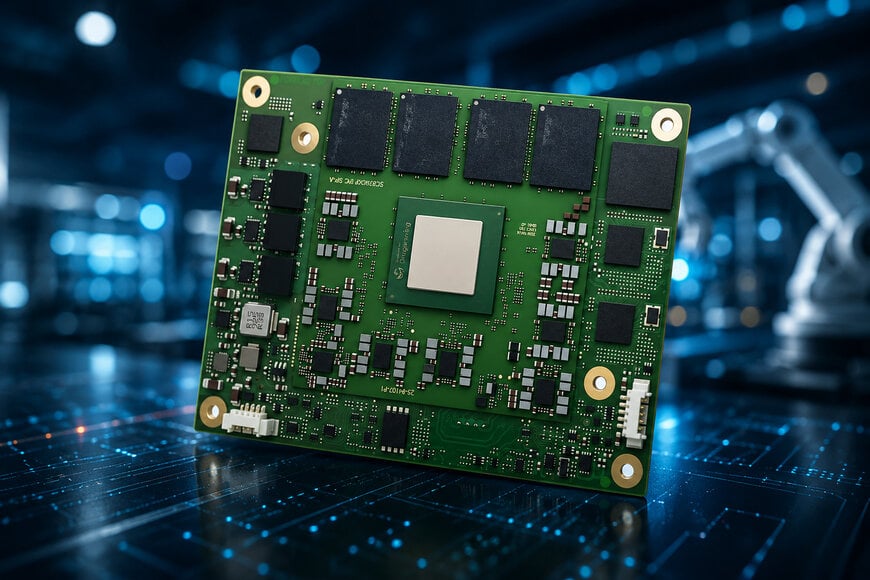

Aaronn Electronic has introduced the congatec conga-HPC/mIQ-X, an ARM-based COM-HPC Mini module developed for edge computing, AI inference, and industrial embedded systems. The platform combines Qualcomm Dragonwing IQ-X processors, integrated AI acceleration, and industrial-grade connectivity within a standardized COM-HPC Mini form factor. It is aimed at OEMs and system integrators developing solutions for robotics, industrial automation, machine vision, and connected edge infrastructures.

Heterogeneous ARM Architecture for Edge AI and Embedded Computing
The conga-HPC/mIQ-X is based on Qualcomm Dragonwing IQ-X processors and integrates up to twelve Qualcomm Oryon CPU cores operating at frequencies of up to 3.4 GHz. The architecture is complemented by a Qualcomm Hexagon NPU delivering up to 45 TOPS of AI performance and an Adreno GPU for graphics-intensive applications and visualization tasks.

The platform employs a heterogeneous computing architecture in which the CPU, GPU, and NPU handle different workloads. AI inference, image processing, and sensor data analytics can run directly on the module, eliminating the need for additional accelerator cards. This level of integration reduces system complexity and simplifies thermal design compared with architectures that rely on discrete AI accelerators.

Soldered LPDDR5x memory is available in capacities ranging from 16 GB to 64 GB and supports data rates of up to 8400 MT/s. Integrated UFS 4.0 storage offers capacities of up to 1 TB. The combination of high-speed memory and onboard storage supports data-intensive applications with fast boot times and low-latency data access.

COM-HPC Mini for Compact High-Performance Platforms
The module adopts the standardized COM-HPC Mini form factor measuring 95 x 70 mm. Its compact footprint enables integration into space-constrained industrial PCs, mobile systems, autonomous platforms, and industrial edge gateways. At the same time, the COM-HPC standard supports modular platform strategies with interchangeable processor generations and long-term product availability.

The COM-HPC specification was designed for applications requiring high computing performance and extensive I/O capabilities. Compared with earlier computer-on-module standards, COM-HPC provides significantly more PCIe lanes, modern high-speed interfaces, and greater scalability for edge servers and high-performance embedded platforms.

High-Speed I/O and Industrial Network Connectivity
To support high-performance peripherals, the module provides up to 16 PCIe lanes, including PCIe Gen4. This enables the integration of FPGA cards, NVMe storage devices, frame grabbers, and additional expansion modules. The system also supports up to two USB4 interfaces for bandwidth-intensive external devices.

For networking applications, the module integrates dual 2.5 Gigabit Ethernet ports with support for IEEE 1588v2 and MACsec. Precision time synchronization enables deployment in industrial communication environments requiring deterministic data transfer, while MACsec enhances network-level security.

For vision applications, MIPI-CSI interfaces allow direct connection of camera systems. Additional interfaces include CAN, I2C, SPI, UART, GPIO, and other embedded connectivity options for integrating sensors, actuators, and industrial control systems.

Industrial Security and Long-Term Availability
The conga-HPC/mIQ-X integrates a TPM 2.0 module that functions as a hardware root of trust. Features such as Secure Boot, encrypted storage regions, and protected firmware processes support cybersecurity strategies for industrial edge systems and connected manufacturing environments.

The specified operating temperature range of -40°C to +85°C qualifies the module for deployment in industrial environments with varying climatic conditions. Hardware health monitoring, watchdog functionality, and power-loss control further support robust designs for stationary and mobile applications.

At the software level, the module supports Linux distributions including Ubuntu Pro and Yocto, as well as Windows 11 IoT Enterprise LTSC. This flexibility allows developers to integrate the platform into existing software ecosystems while supporting long-term product lifecycle requirements.

Edge AI for Machine Vision, Robotics, and Industrial Automation
The module addresses a broad range of industrial applications. In factory automation environments, AI models can analyze production and sensor data locally to support predictive and condition-based maintenance. The platform’s memory bandwidth enables parallel processing of multiple data streams.

For machine vision systems, the combination of ISP, GPU, and NPU accelerates image classification, quality inspection, and object detection directly at the edge. Manufacturing operations can benefit from reduced latency and local decision-making capabilities.

In robotics applications, the architecture supports navigation algorithms, simultaneous localization and mapping (SLAM), and sensor fusion. LiDAR, camera, and IMU data can be processed on a single platform, reducing the need for external computing resources.

The module is also suitable for industrial edge servers and gateways that perform data aggregation, preprocessing, and secure transmission to cloud infrastructures. Dual 2.5 GbE connectivity supports redundant network architectures in distributed industrial facilities.

Additional Context: Technical Specifications and Competitive Benchmarking Not Included in the Original Product Announcement
The market for ARM-based high-performance computer-on-modules continues to evolve toward edge AI and local inference processing. Comparable platforms include the NVIDIA Jetson AGX Orin family, AI-enabled Advantech embedded systems, and various COM-HPC and SMARC modules from Kontron, SECO, and ADLINK.

With up to 45 TOPS of AI performance, the conga-HPC/mIQ-X is positioned among high-performance edge AI platforms designed for local inference processing. Unlike many conventional ARM-based embedded modules, the platform combines CPU, GPU, DSP, and NPU resources within a standardized COM-HPC Mini module.

Another distinguishing feature is the COM-HPC Mini standard itself, which provides greater I/O density and long-term scalability compared with many proprietary edge AI platforms. For OEMs, the separation of the carrier board from the compute module enables the reuse of existing hardware designs when upgrading to future processor generations.

The combination of up to twelve Oryon CPU cores, 64 GB of LPDDR5x memory, PCIe Gen4, USB4 connectivity, and an industrial operating temperature range addresses applications with demanding requirements for data processing, networking, and AI inference at the edge. Through this platform, congatec expands the COM-HPC ecosystem with an ARM-based solution tailored for industrial edge computing and embedded AI deployments.
