Real-Time SLAM Navigation and 3D Obstacle Monitoring

Modern manufacturing and warehouse facilities deploy automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) in spaces shared with pedestrian workers, transient pallet staging, and heavy equipment. In these highly dynamic production environments, conventional 2D laser-based localization platforms frequently encounter operational blind spots, map drift, and path planning bottlenecks when temporary obstacles appear unexpectedly. Addressing these navigation disruptions requires multi-sensor data fusion, dynamic local path re-planning, and volumetric environment sensing to prevent vehicle stalls and maintain high material handling throughput.

Multi-Sensor SLAM and Real-Time Local Mapping

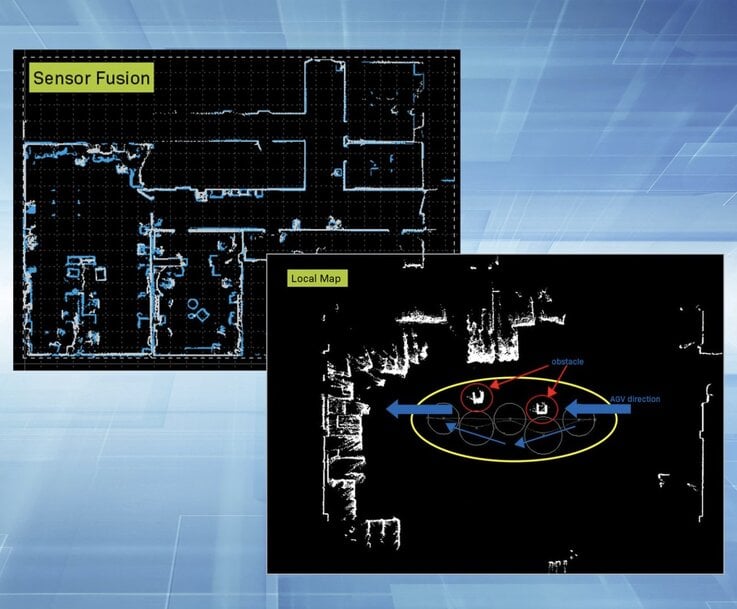

To resolve localization ambiguities in changing industrial spaces, SIGMATEK introduced enhanced Simultaneous Localization and Mapping (SLAM) capabilities within its open-source, real-time localization software, SLAMLoc. The software architecture incorporates sensor fusion algorithms that combine raw point data from multiple LiDAR scanners mounted across the vehicle chassis. By merging disparate scanning streams into a unified environmental map, the platform establishes continuous situational awareness, optimizing vehicle trajectory calculations even in large facilities where spatial landmarks shift frequently.

For localized obstacle avoidance, the software introduces an on-demand dynamic local map, designated MiniMap. This module evaluates the immediate envelope surrounding the mobile base in real time to capture transient floor obstacles. Rather than halting the vehicle when an unmapped obstruction enters the travel lane, the system calculates an optimized alternative bypass trajectory, maintaining material transport cycles and minimizing unnecessary stoppage downtime.

Virtual Diagnostics and Commissioning Analysis
To streamline deployment cycles, SLAMLoc incorporates a virtual troubleshooting module that permits remote diagnostic evaluation without requiring physical access to the operating mobile platform. Engineering and service teams can reconstruct historical mission sequences to determine the operational triggers behind vehicle halts, trajectory deviations, or navigation interruptions.

This remote playback capability accelerates root-cause isolation during field commissioning, reduces routine maintenance intervals, and supports iterative tuning of fleet operating parameters across industrial sites.

Volumetric Sensing for Route Protection
Complementing contour-based SLAM, the AGV Automation Visionary 3D software solution introduces three-dimensional route monitoring to eliminate blind spots typical of planar 2D LiDAR systems. The system integrates one or two SICK Visionary-T Mini cameras directly into the navigation architecture to capture spatial point clouds along the forward travel path.

This 3D volumetric inspection detects ground-level and suspended hazards that escape standard horizontal planar scans, including empty elevator shafts, protruding forklift tines, floor steps, and low-profile objects. Incorporating multi-dimensional object classification reinforces vehicle safety functions, protecting autonomous mobile platforms in complex manufacturing and intralogistics applications.

Additional Context
This section details technical specifications and competitive benchmarking not included in the original product announcement.

In industrial mobile robotics, navigation architectures typically balance contour-based 2D LiDAR SLAM, natural feature SLAM, and time-of-flight (ToF) 3D vision. Planar 2D safety laser scanners—often constrained to a single horizontal scanning plane 150 mm to 200 mm above floor level—are standardized to satisfy ISO 3691-4 safety field requirements, but fail to detect negative obstacles (such as floor drop-offs and open pits) or overhanging loads. The SICK Visionary-T Mini utilizes 3D time-of-flight technology, capturing up to 30 three-dimensional depth frames per second across a 512 × 424 pixel matrix with an 80° × 60° field of view, providing spatial depth resolution up to a 5-meter working range.

Within open-source and proprietary industrial AMR navigation stacks—such as the Robot Operating System (ROS 2) Nav2 framework, KUKA Navigation Solution, and Kollmorgen NDC solutions—competitive benchmarking centers on processing overhead, re-localization recovery time after kidnapping, and dynamic re-routing latency. While standard global SLAM implementations recalculate large environmental occupancy grids through resource-intensive graph optimization, executing local sub-maps (such as MiniMap) isolates local point-cloud processing. This architecture maintains deterministic control loop cycles below 50 milliseconds, ensuring agile path avoidance while maintaining ISO 3691-4 personnel safety compliance in congested logistics hubs.
